Yuyao Huangong automation instruments factory
$81≥5Others
| Min. sipariş: | 5 |
| Ulaşım: | Ocean,Land,Air,Express |
| Liman: | ningbo |
Gölge:

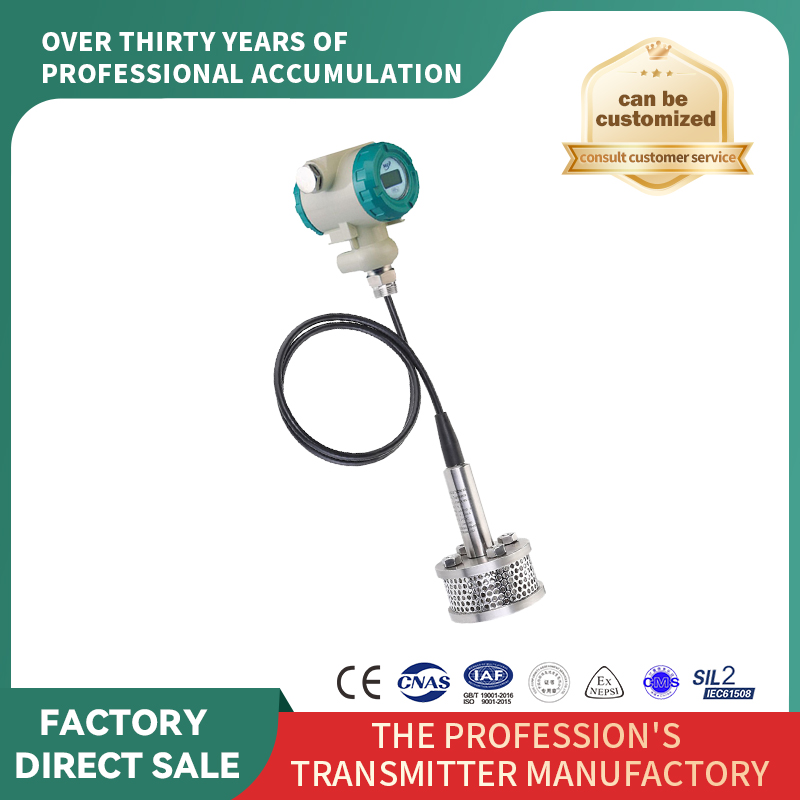

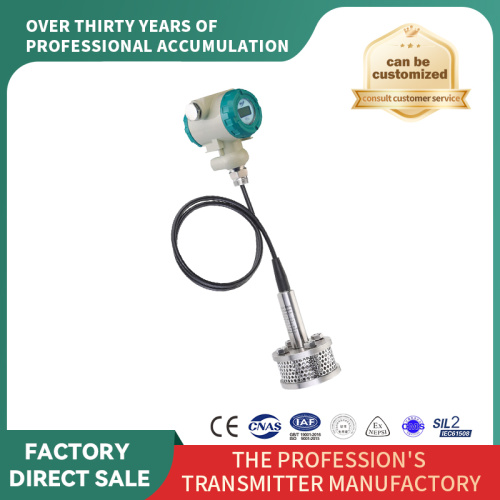

model numarası.: PB86
Model numarası.: PB86
Pressure Range: Atmospheric Pressure
Accuracy Grade: 0.25%F.S. 0.5%F.S.
IP Rating: Ip68
belgeleme: CE/ISO/Sil
Measuring Range: 0 to 0.5 Meters and Above
Shell Material: 304 Stainless Steel
The Temperature Of The Measured Medium: -10~60degrees Celsius
Power Supply: 24vdc
Type Of Protection: Standard Type / Exia II CT4ga
Transport Package: Carton Packing
Specification: PCS
Trademark: HUANGONG
Origin: China
üretim kapasitesi: 120000 Pieces / Year
Özelleştirme: Available
Type: Silicon Piezoresistive Type
Structure Design: Input-Based
Nakliye Maliyeti: Nakliye ve tahmini teslimat süresi hakkında tedarikçiyle iletişime geçin
| Paket Türü | : | Karton Ambalaj |
The file is encrypted. Please fill in the following information to continue accessing it
| Accuracy | 0.5%F·S |
| Measuring range | 0…5m to 0…1500m |
| Linearity | superior to 0.2%F·S |
| Temperature drift | |
| Stability | superior to 0.5%F·S for 1 year |
| Response time | 10mS |
| Power supply | 12 to 36VDC |
| Output | 4…20mADC |
| Load resistance | 0 ~600Ω |
| Liquid temp | -10…60ºC |
| Compensated temp | -10…60ºC |
| Storage temp | -45…125ºC |
| Installation position | direct into the bottom of the liquid |
| Housing material | 304 stainless steel or 316 stainless steel |
| Diaphragm material | 316L stainless steel |
| Breathing cable material | polythene or PTFE |
| Weight | Stainless steel pipe(G1): about 300g Breathing cable(G2): about 65g/m Junction box(G3):about 300g-700g |
| Gross weight(G) | G=G1+G2*length(m)+G3 |
| Power consume | <5W(24VDC) |
